Audio Amplifiers - Fosi Audio BT20A
© Graphic Image Technologies 2021
Product Links
.
FOSI Audio BT20A Bluetooth 5.0 Stereo Audio Amplifier 100W x 2
2 Channel Class D Amplifier for Home Audio -- 100W x 2 with Bass and Treble Control - TPA3116
Description
100W Max X 2(4 ohms, 20 Hz - 20 kHz, 0.04% THD), comes with a 24V power supply, can drive 280 watts(8 ohms), 320watts(4 ohms)
speakers, (For passive speakers only, not powered speakers.)
Advanced circuitry design, built-in speakers protection circuit,
Home integrated digital amplifier, 12-month warranty, you can return the item if you have any problems;
Small simple compact design but practical and powerful, Hi-Fi Bluetooth amplifier exclusively designed for the customers who pursue HiFi
sound;
Bluetooth 5.0 core, up to 10m connection range guarantees low signal delay. No pop, no audible noise when Bluetooth connection is
established;
Over 3000 5* ratings on a well known international e-commerce site!
Specifications
1. Power supply range: 12v-24v;
2. THD: 0.5%.
3. Frequency Range: 20Hz - 20kHz (±1 dB);
4. SNR: ? 98dB;
5. Input sensitivity: ? 280mV;
6. Bluetooth transmission distance: 28ft;
7. Terminating impedance: 2Ohm - 8Ohm;
8. Output power: 100W + 100W;
9. Input mode: Bluetooth and Analog;
10. Bluetooth Name: Fosi Audio
11. Bluetooth chip: Qualcomm QCC3003
12. Power supply: 24V 4.5A
13. Supplied Accessories: Amplifier, Power supply, AC power cord

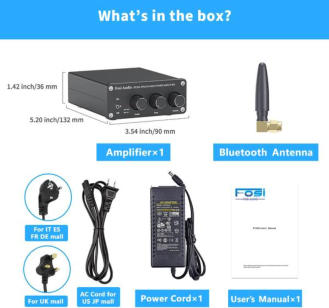

What's in the box
1 x BT20A Amplifier
1 x Power Supply
1 x Manual
