Audio Amplifiers - Fosi Audio BT30D Pro
© Graphic Image Technologies 2021

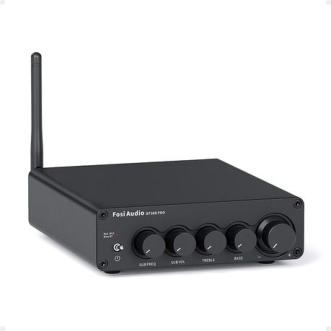

FOSI BT30D Pro Hi-Fi Bluetooth 5.0
receiver, 2.1 Channel Audio Amplifier
Mini Class D Integrated Amp 165 Watt x 2 + 350
Watt for Home Outdoor Desktop Bookshelf
Speakers/Subwoofers
Description
Brand: Fosi Audio
Connectivity Technology: Wireless, Bluetooth
Compatible Devices Speaker
Surround Sound Channel Configuration: 2.1
Channel
Item Dimensions LxWxH 15 x 12 x 2.5 cm
Item Weight 750 grams
Wattage 160 watts
Number of Channels 2
About this item

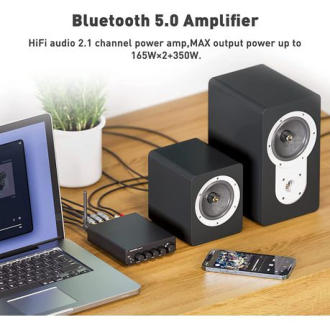

Advanced 2.1CH, Bluetooth 5.0 Receiver, Amplifier
achieves HiFi music quality, the best choice for
your home audio entertainment. You can connect
passive speakers/passive subwoofer/powered
speakers/powered subwoofer to your DIY a stereo
sound system.
Fosi Audio BT30D Pro is the upgraded version for
BT30D. All-NEW Black Aluminum Appearance.
BT30D VS BT30D Pro: MAX Power Output: 50 Watt
x2 +100 Watt VS 165 Watt x 2+350 Watt,
Amplifier Chip: TPA3116D2 VS TPA3255. Output:
RCA output for powered subwoofers VS 3.5MM
full-range output for powered subwoofers and
speakers. Just choose one model for your needs.
BT30D Pro Adopts 2 Texas Instruments TPA3255
high-performance Class-D power amplifier chips.
BT30D Pro can drive up to 2 x 175 W into 4-? load
and 2 x 220 W into 3-? load. In addition to excellent
audio performance, TPA3255 achieves both high
power efficiency and very low power stage idle
losses below 1 W. This is achieved through the use
of 60 m? MOSFETs and an optimized gate driver
scheme that achieves significantly lower idle losses
than typical discrete implementations.

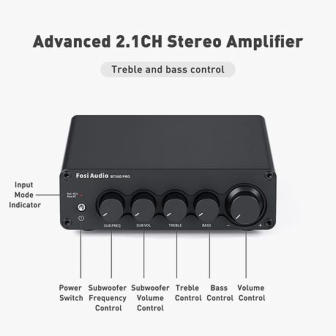

Professional wireless amp with subwoofer
frequency, SUB volume, master
volume/bass/treble control.
No pop sounds, no audible noise during the
connection.

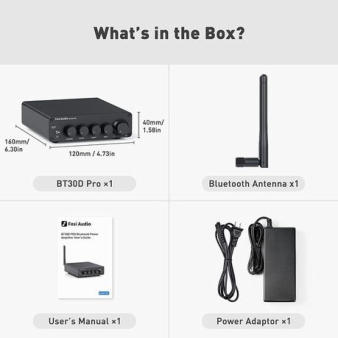

What's in the box
1 x BT30D Pro Amp
1 x power supply
1 x user manual
