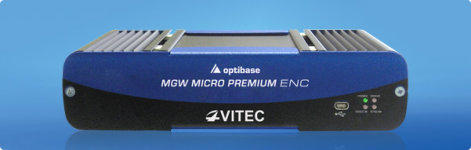

Encoders MGW Micro Premium Low-Latency Multi-Channel Compact H.264 Appliance Featuring TurboVideo™ Low Delay Encoding Technology Faster, denser, more powerful and more cost-effective - MGW Micro Premium is Optibase’s most advanced industrial-grade, MPEG-4 H.264 portable encoding and streaming appliance ever. With TurboVideo™ technology, MGW Micro Premium is designed for low latency distribution of high-definition and standard- definition video sources across the enterprise, utilizing minimal bandwidth while preserving broadcast-quality video up to Full HD 1080 resolution. Market Leader in Streaming Capacity MGW Micro Premium boosts powerful hardware-based video compression engines that encode and stream one HD source or up to four SD sources in a small form factor, making it the most compact, professional-grade H.264 AVC encoder in the market. Best-in-Class Connectivity Options MGW Micro Premium offers the highest flexibility with video inputs including 3G, HD-SDI, SD-SDI, DVI, HDMI and Composite, with digital embedded or analog audio in a single appliance. A built-in video matrix and scaler enables the operator to take a single video source and encode it up to four times with different resolutions and frame rates, with optional on-the-fly downscaling of HD source to SD streams. High-Performance Appliance for Mission-Critical Applications MGW Micro Premium is the ideal encoding and streaming platform for organizational networks, remote locations, mobile vehicles or the most extreme military environments, optimized for mission critical ingestion and dissemination of Full Motion Video (FMV) with optional metadata information. Its professional-grade, rugged enclosure combined with Optibase’s 6-th generation H.264 HD/SD video compression codec, offers durability, quality of service and best-in-class video quality with less than 65 milliseconds encoding latency, powered by Vitec Multimedia’s TurboVideo™ technology. MGW Micro Premium’s ultra-small, airborne-ready footprint makes it a perfect solution for portable applications. Fully Secure End-to-End IP Video Delivery Solution MGW Micro Premium can be used as a stand-alone high quality, low delay encoder or in conjunction with Optibase EZ TV and FITIS IPTV Systems to provide a fully secure end-to-end IP video delivery solution utilizing its real-time AES-256/128-bit encryption capability. Using the low latency decoding capabilities of Optibase EZ TV and FITIS PC Players, operators can achieve end-to-end latency of less than 140 milliseconds with HD 1080p video or with standard definition content. Applications • Point-to-Point video contribution with ultra low delay • Dissemination of Situational Awareness and Full Motion Video (FMV) content across LANs and WANs • Intelligence Security and Surveillance (ISR) video from mobile and airborne vehicles • Full HD 1080p60 monitoring • Encoding and multicasting high-res HDMI/DVI sources • Digital signage • Streaming PC screens over the LAN / WAN • Distribution of TV content on an organizational network Benefits • High density with multiple encoding engines to support 1xHD or 4xSD sources • Ultra small form factor, ideal for mobile applications • Rugged, fanless, securable enclosure, optimized for harsh environments • Transport infrastructure agnostic: Satellite, xDSL, LANs, WANs, 3G/4G/LTE and FTTx • Industry-standard, open architecture allows decoding TurboVideo™ streams with any H.264 players in low delay Key Features • Superb HD and SD H.264 AVC compression quality • Supports a wide range of bit rates, frame rates and resolutions • Airborne-ready rugged design with no moving parts • Less than 65 milliseconds latency with metadata insertion • Built-in AES-256/128-bit encryption, fully integrated with Optibase EZ TV and FITIS Players • Flexible inputs: 3G, HD/SD-SDI, DVI, HDMI and Composite in one appliance • Ability to encode a video source at 4 different resolutions and data rates in parallel Advanced Features • Low Latency Streaming, powered by Optibase TurboVideo™ technology: ultra-fast video compression and streaming algorithms • Multi-Stream Mode: Unprecedented processing power - Up to 4 distinct simultaneous encoding sessions from a single source for serving recipients with different quality/bandwidth needs • Encryption: AES-256/128-bit, fully interoperable with Optibase EZ TV and FITIS systems • Smooth Streaming: Optibase Smoothing™ algorithm for shaping outbound traffic to ensure highest quality of service and consistent bandwidth utilization • Metadata Insertion: Real-time Cursor on Target to Key Length Value conversion (CoT to KLV) as per MISB EG0601.1, EG0601.4, and EG0805 (input as serial or over UDP/IP) • Built-in Scaler: Integrated resolution and frame rate scaler automatically adjusts incoming sources to specified encoding resolutions and frame rates. MGW 2000e MPEG-1 and MPEG-2 Video Streaming Platform MGW 2000e is a broadcast-quality, multi-channel streaming platform. With a module-based architecture, it supports up to 6 modules of analog or SDI signals, each can be streamed over IP or recorded to a MPEG file. With MGW 2000e, organizations can utilize their IP networks for business TV, training and corporate communications. Live, Offline and Scheduled Streaming Capabilities MGW 2000e combines ease-of-use with advanced features. Each video feed can be compresses and sent to multiple targets such as multicast, unicast and USB disk storage for offline playback. The platform also offers scheduling tasks to accommodate broadcast workflows that require distribution and automatic announcement of video assets. MGW 2000e's traffic shaping mechanism optimizes network usage, enabling the best video quality over any network. Web-Based Remote Management with SDK MGW 2000e's remote management system enables the configuration, operation and monitoring of multiple streams via a web-based management application. Alternatively, system integrators can develop custom front-end applications using MGW 2000e comprehensive ActiveX API. Applications • Business TV • Corporate Communications • Training • Archiving • Monitoring / Surveillance • File Creation for local-VOD services Benefits • Hardware-based encoding offers Broadcast- quality compression • Modular design provides cost-effective solution that and scales • Analog or SDI with embedded audio support for processing of high quality sources • Developer API for integration with third party applications MGW Micro Portable Rugged MPEG-4 H.264 Encoder with Metadata Support MGW Micro is an industrial-grade, MPEG-4 H.264 IP encoder designed for the most extreme environments. Optimized for mission critical ISR applications, MGW Micro offers real-time, low latency streaming of live video sources in a portable, ruggedized airborne-ready foot print. MGW Micro offers built-in capability of converting CoT metadata to KLV and streaming the FMV with metadata. Tactical Video Anywhere, Anytime MGW Micro is the smallest, professional grade, rugged MPEG-4 H.264 Full Motion Video (FMV) encoder available, optimized for mobile and airborne platforms as well as mission critical deployments. MGW Micro uses advanced MPEG-4 AVC (H.264) video compression, to ensure excellent video stream quality and using low bandwidths. With advanced video processing features such as real-time metadata insertion, video masking, metadata insertion, text overlay and boot up time of 2 seconds the Optibase MGW Micro is the optimal solution for UAV’s and other ISR applications. With its unique robust construction and no moving parts, the MGW Micro withstands extremes environmental conditions of -40°F to 158°F (-40°C to 70°C), 5%-95% relative humidity without compromising operation and quality of service. The auto-saved configuration feature allows operator to recover encoding and streaming service immediately after the unit is powered-up. IPTV Services with Maximal Reach Use MGW Micro with Optibase EZ TV or FITIS IPTV Systems and provide an end-to-end IP video delivery solution using your existing IP infrastructure. With the advanced Optibase IPTV Player, local and remote network users permitted will be able to access and view MGW Micro streams and watch situational awareness and tactical video in multi-window mosaic views. Applications • Tactical Video / KLV Metadata Insertion • Intelligence Security and Surveillance (ISR) • Mobile and Airborne Vehicles • Point to Point Contribution • Monitoring Benefits • Ultra small form factor, ideal for mobile applications (weight: 0.85 lb) • Rugged, securable enclosure, optimized for extreme environments • Suitable for any transport infrastructure: Satellite, xDSL, LANs and WANs • Enables access to situational awareness and tactical video from the edge
