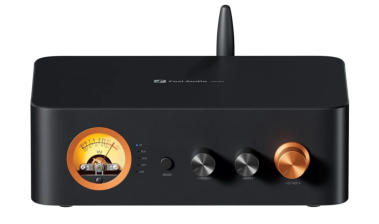

Fosi Audio MC351 2.1 Channel Integrated
Amplifier With DAC, VU Meter And
Bluetooth
Description
All-in-One DAC Amplifier: The MC351
integrated amp features high-resolution
decoding capabilities, supporting Bluetooth,

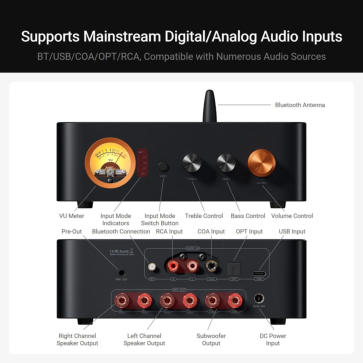

USB, Optical, and Coaxial digital inputs.

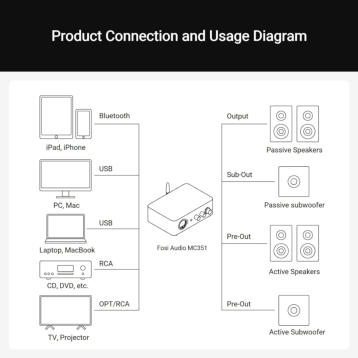

With its extensive input and output options,
you can easily set up a 2.1 home theater or
other stereo HiFi audio systems.
High Power with Great Sound: Equipped
with two high-end Texas Instruments
TPA3255 Class-D amplifier chips and a
100-fin heatsink, the MC351 can stably
output up to 165W x 2 + 350W power in a
2.1 channel setup. The dual PCBA
separated design ensures that the input
and output signals do not interfere with
each other, providing you with the purest
and most impeccable sound quality.
User-Friendly Control Design: Supports
one-touch switching between 5 input
modes and includes bass and treble
controls, with central detents for tone
defeating, for easy sound customization. It
also features an automatic standby
function, entering standby mode after 2
minutes of no signal input to effectively
reduce power consumption.
Vintage Charm: The eye candy round mini
VU meter adds a classic retro vibe to your
sound system. The needle of the level
meter will dance to the music, providing
you with both visual and auditory
enjoyment. The MC351 is an excellent
companion for turntables, allowing you to
relive classic tracks.
Exquisite Craftsmanship: Featuring an
all-aluminum-alloy CNC integrated design
and a finely sandblasted metal finish, the
MC351 boasts a seamless body with no
visible screws, showcasing minimalist
aesthetics. The all-metal body ensures
durability, and you can enjoy the peace of
mind provided by Fosi Audio's 24-month
warranty.
Specifications
Output Power:
165W x 2 + 350W @ 4Ω
Terminating Impedance: 4-8Ω
Input Mode: Bluetooth
5.3+RCA+COA+OPT+USB
Output Mode: SPK OUT+SUB
OUT+3.5mm PRE OUT
Frequency Range: 20Hz - 20KHz(±0.1dB)
THD: ≤0.03%
SNR: ≥100dB
Device Dimension: 13.82 x 9.21 x 3.62
inches
DC Input Range: 24-48V
Sampling Rate: USB24bit/96kHz ;
OPT/COA 32bit/192kHz
Power Supply: 32V/5A, 48V/5A

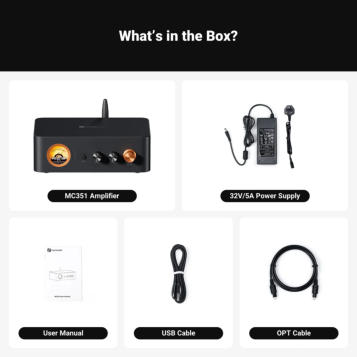

What's in the Box
1 x MC351 Power Amplifier x 11 x
1 x 32V/5A Power Adapter
1 x User’s Manual x 1n
