Audio Amplifiers - Fosi Audio BT30D
© Graphic Image Technologies 2021
Fosi Audio BT30D Bluetooth 5.0
Stereo Audio Receiver Amplifier
2.1 Channel Mini Hi-Fi Class D Integrated Amp 50
Watt x2+100 Watt for Home Outdoor Passive
Speakers &Subwoofer

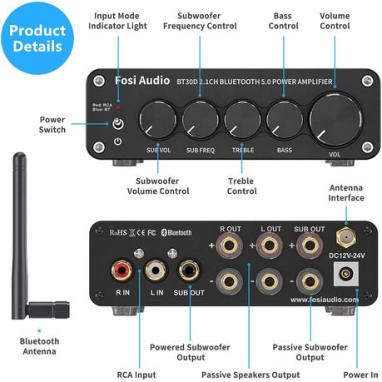

Description
2.1CH Bluetooth 5.0 Power Amplifier: Exquisite
design, improved operation, great sound
performance.
BT30D supports Bluetooth and RCA input can
drive most home passive speakers and a
passive/powered subwoofer. SUB
volume/Frequency, Bass/Treble control ensure
Hi-Fi music quality.
Integrates 2 Texas Instruments TPA3116D2 chips.
High-performance effectively improving output
power and audio quality. Max power output is up
to 200 Watts.
Bluetooth 5.0 stereo audio amplifier receiver,
increases the stability, sound quality and usable
distance, streaming range up to 15m, works with
latest devices including smartphone, tablets,
laptops, computers, etc.
Product Specifications:
2.1 CH Bluetooth Stereo Amp
Power Adapter: 24V/4.5A
DC Input Range: 12-24V
THD: ? 0.04%, SNR: ? 98dB
Frequency Range: 20Hz - 20kHz (±1 dB)
Input Sensitivity: ? 280mV;
Terminating Impedance: 2 - 8 Ohm
MAX Power Output: 50W x 2+100W
Input Mode: Bluetooth and RCA
Bluetooth Transmission Distance: Up to 15m
Package Includes: BT30D Amp, Power Supply,
User Manual
What's in the box
1 x BT30D Amplifier
1 x 24V/4.5A Power Supply and Ac Cord
1 x User Manual
